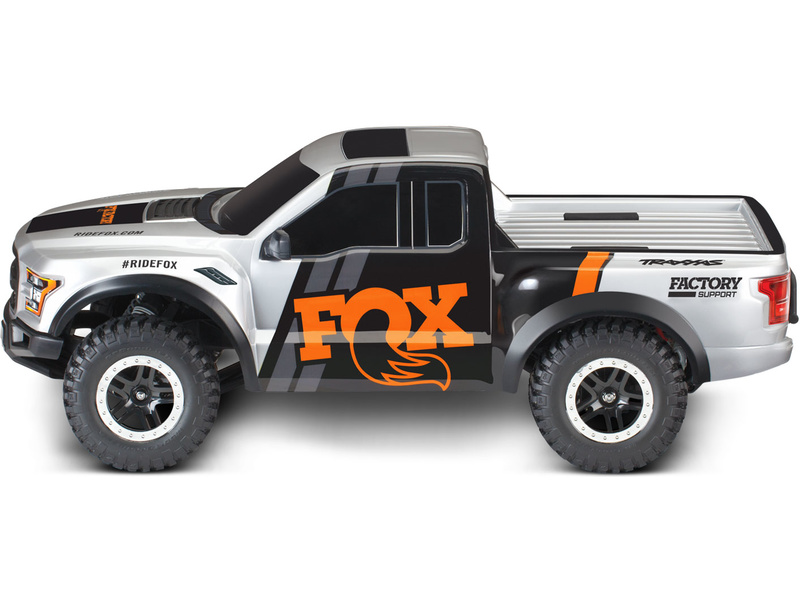

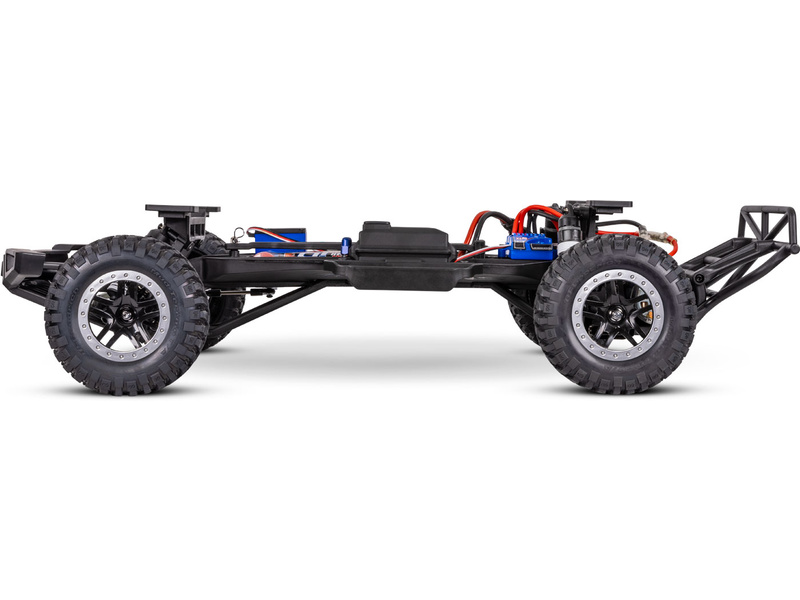

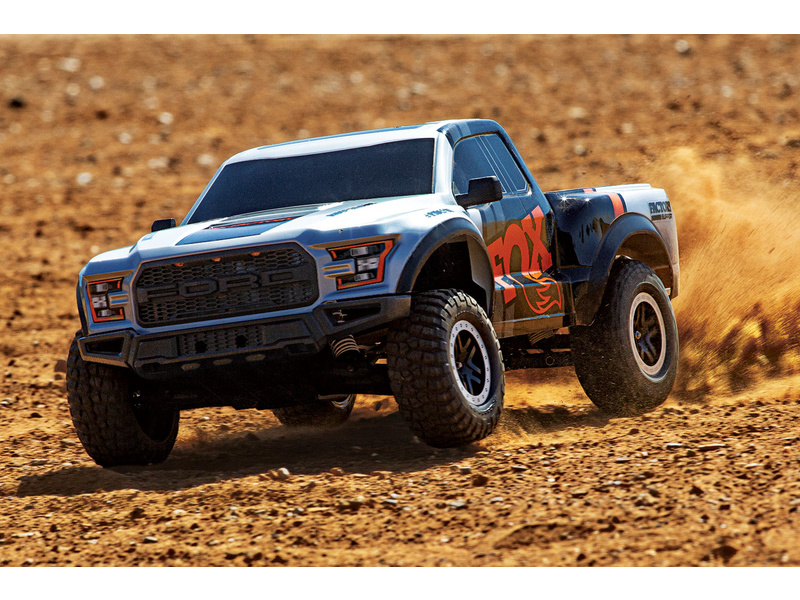

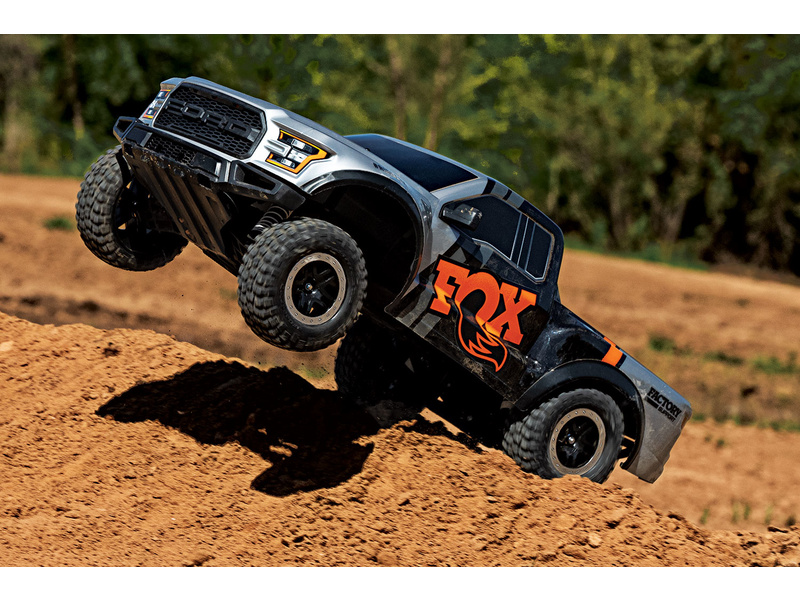

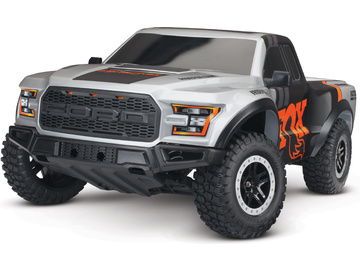

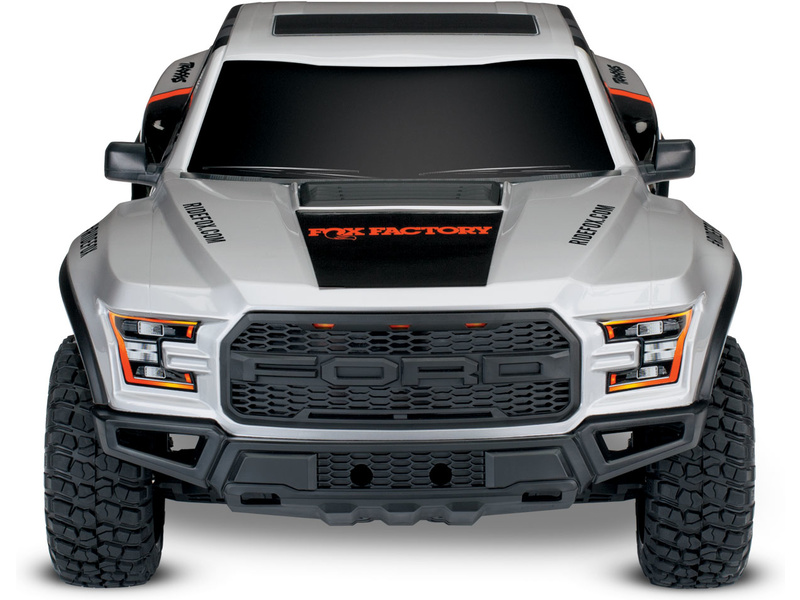

Type | Short Course Truck |
---|---|
Scale | 1:10 |
Length | 568 mm |
Width | 296 mm |
Wheelbase | 335 mm |
Ground clearance | 89 mm |
Weight | 2160 g |

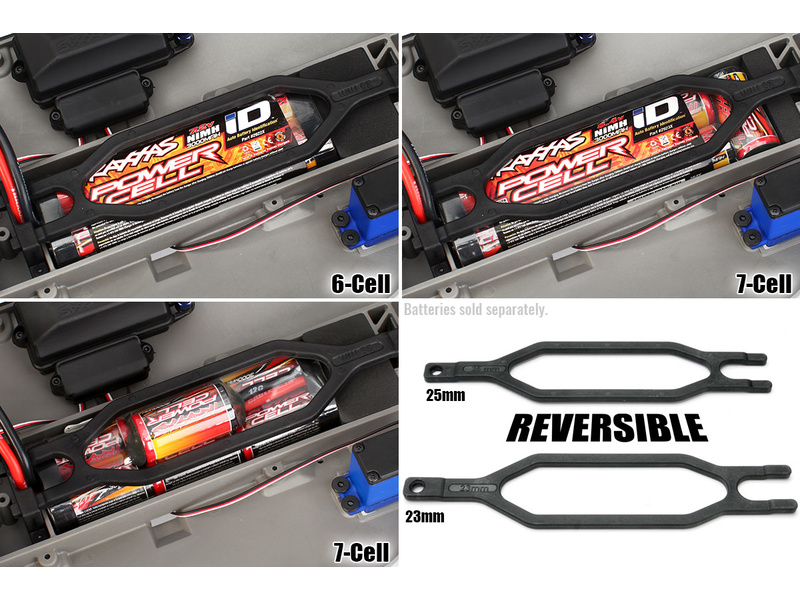

Battery compartment | 165 x 49 x 23/25 mm |
Drive | 2WD |

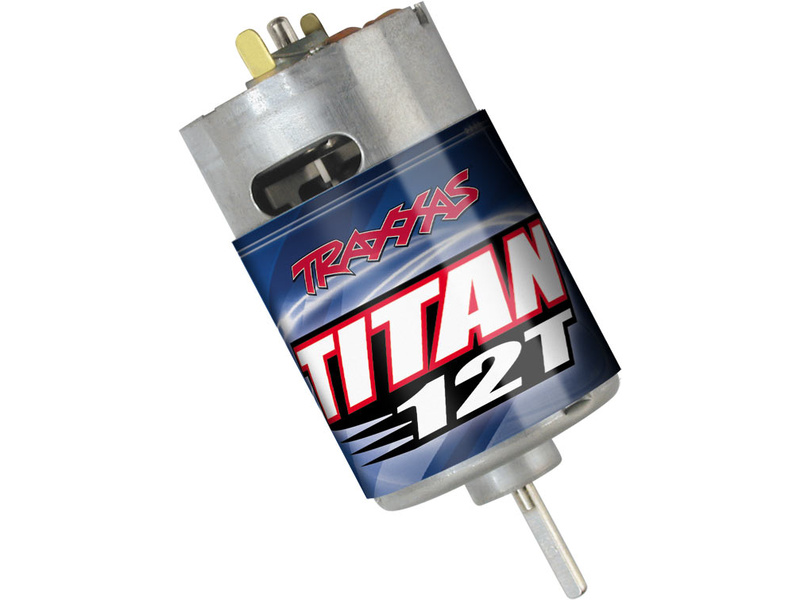

Engine | Brush Titan 12T 550 12 |
Driving time | 25 - 30 min |
Speed | Up 48 km/h (with optional gear), stock gearing 30 km/h |

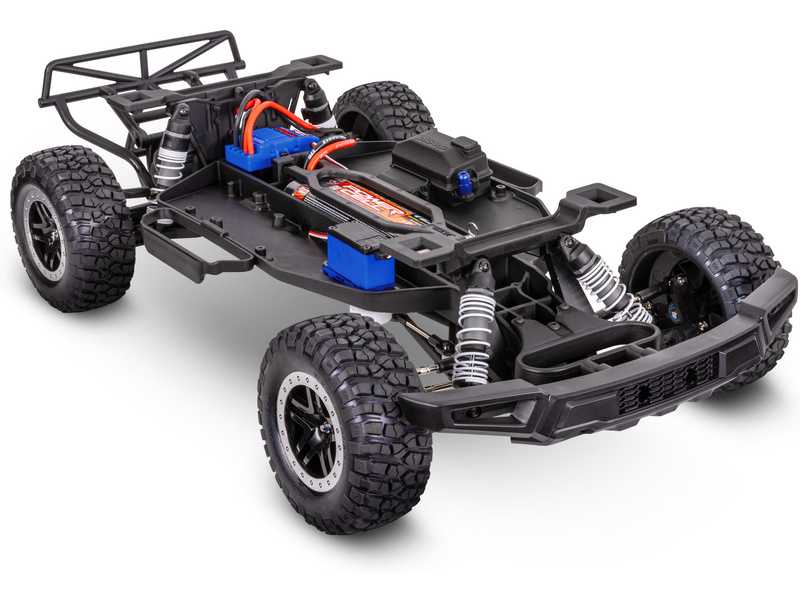

Chassis | Nylon |
Height | 214 mm |

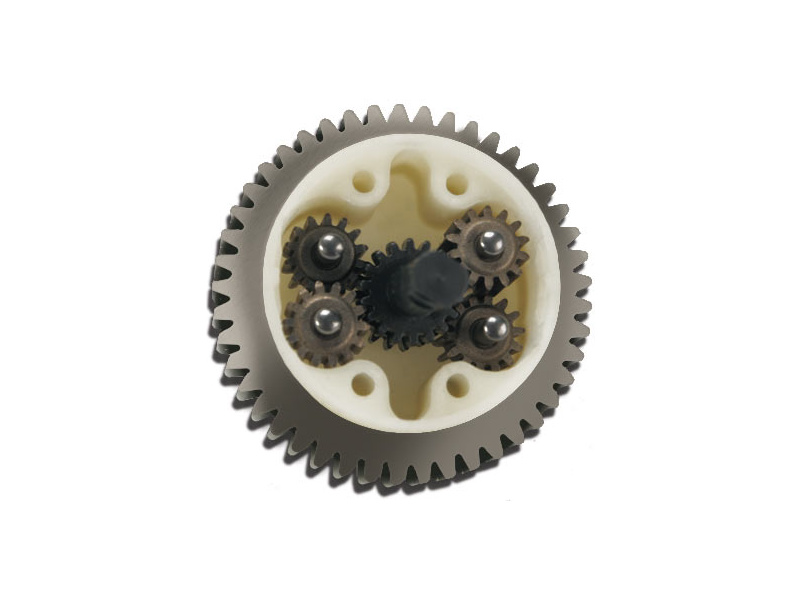

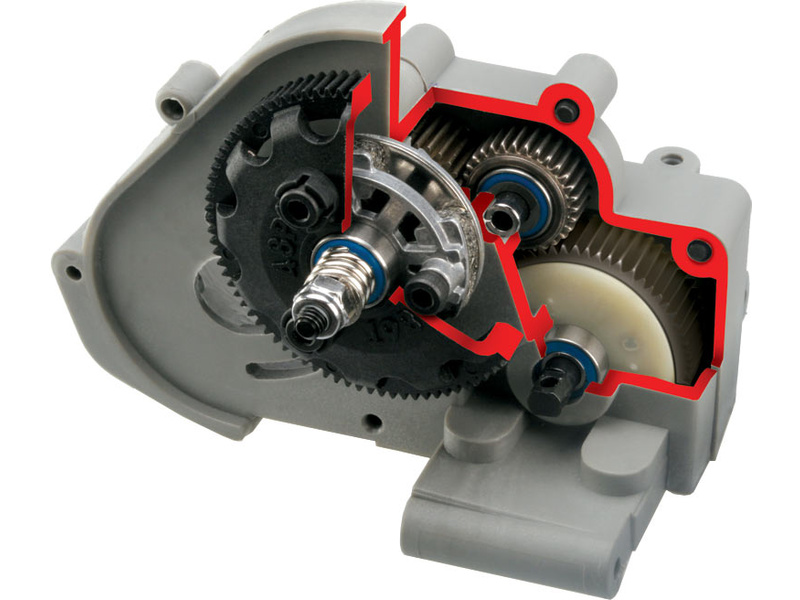

Transmission | Magnum 272 |

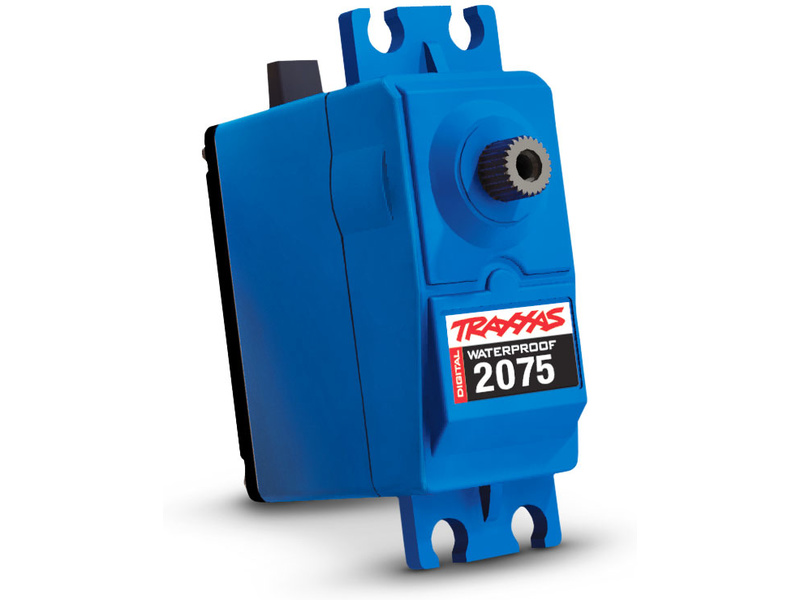

Use | Cars 1:10 |
---|---|
Management | Digital |
Power voltage | 4.8 - 6.0 V |
Dimensions | Standard |
Weight | 42 g |
Moment | 9.0 kg.cm @ 6.0 V |
Speed | 0.17 s/60°@ 6.0 V |
Transfers | Nylon |
Bearings | Yes, 2 ks |

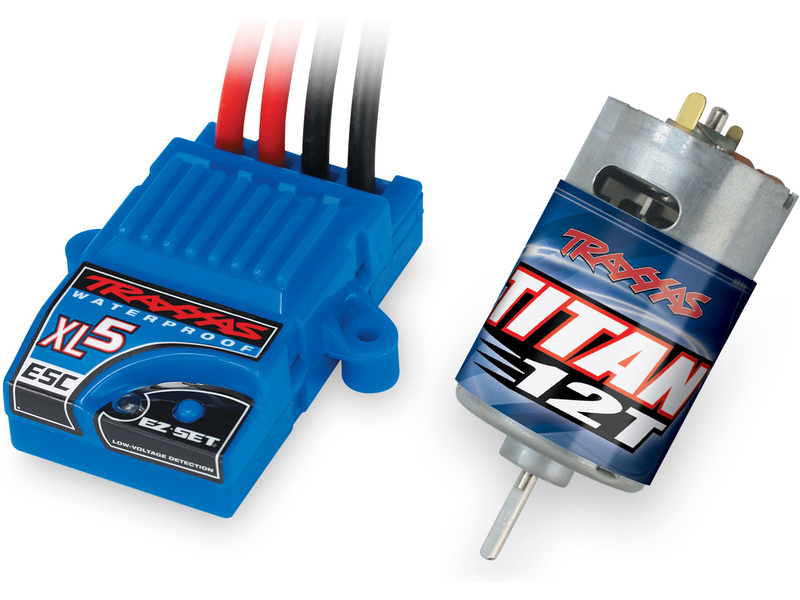

Engine type | Brushed |
Connector | Universal Futaba |

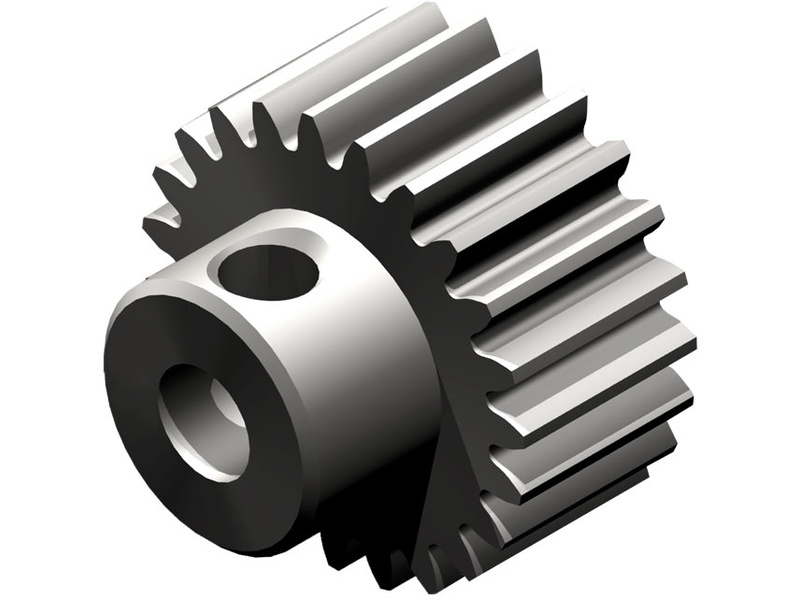

Tisícihran | 25T |
Cable | 30 cm |
Weight | 209 g |
---|---|
Connectors | kolíky 4 mm |
Number of poles | 2 |
Number of threads | 12 |
Speed | 7500 ot/min/V |
Maximum supply voltage | 3 články LiPo |
No-load current | 3,7 A při 7,5 V |
Internal resistance | 40 mΩ |
Efficiency | 80 % |
Dimensions | ø36 x 57 mm |
Shaft | ø3,175 x 16 mm |

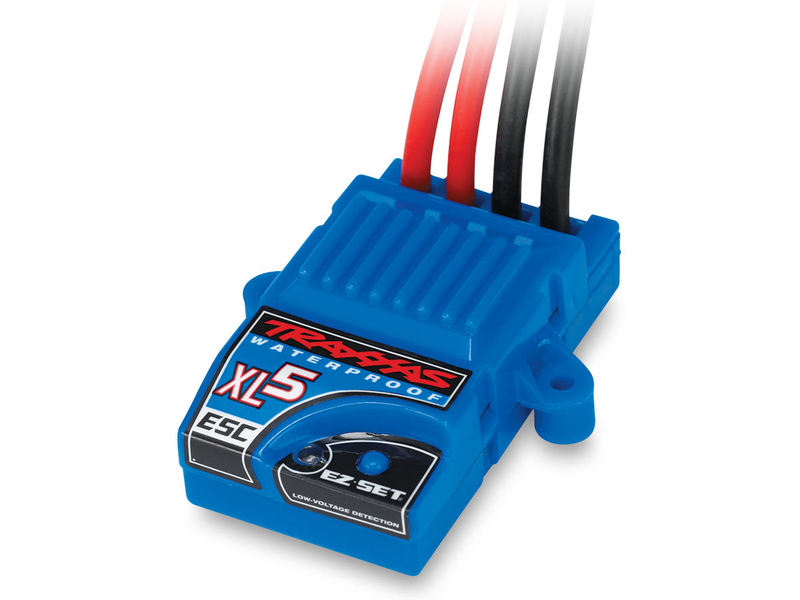

Type | Brushed |
---|---|
Use | Cars |
Power supply | 4-8 cl. NiMH, 2S LiPol |
Current | 14 A (continuous) |
BEC | Linear 6 V / 1 A (continuous) 2 A (short-term) |
Length | 55 mm |
Width | 31.2 mm |
Height | 16 mm |
Weight | 70 g |
Waterproof | Yes |
Input for sensors | No |
Thermal protection | Ano |
PWM frequency | 1400 Hz |
Maximum continuous current | 14 A |
Internal resistance | 7 mΩ pro směr vpřed, 14 mΩ pro zpátečku |
Minimum number of threads | 12 |
Ochrana proti podvybití LiPo | 2-Stage indicators, switchable (on or off) |
Odpor (vpřed) | 0.007 Ω |
Odpor (zpátečka) | 0.014 Ω |

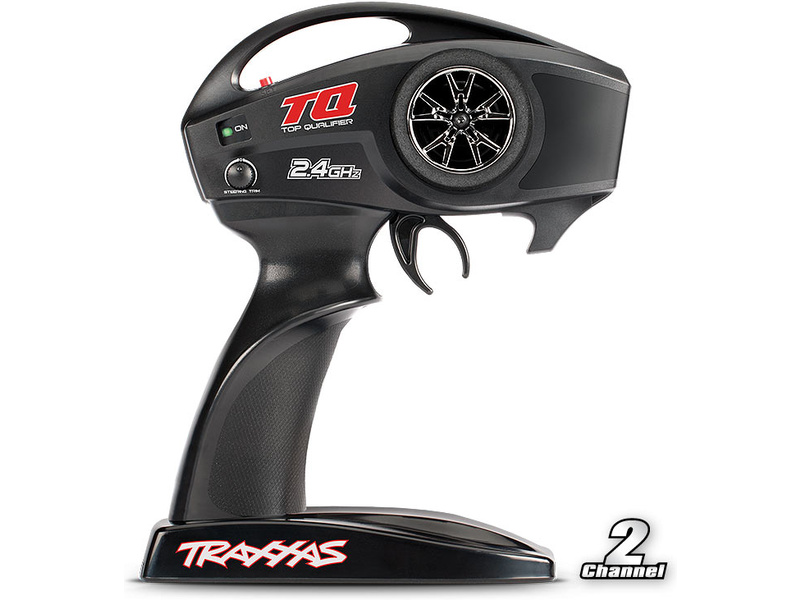

Use | Rc cars |
---|---|
Zone | 2,4 GHZ |
Number of channels | 2 |
Power supply | 4x AA batteries |
Telemetry | No |

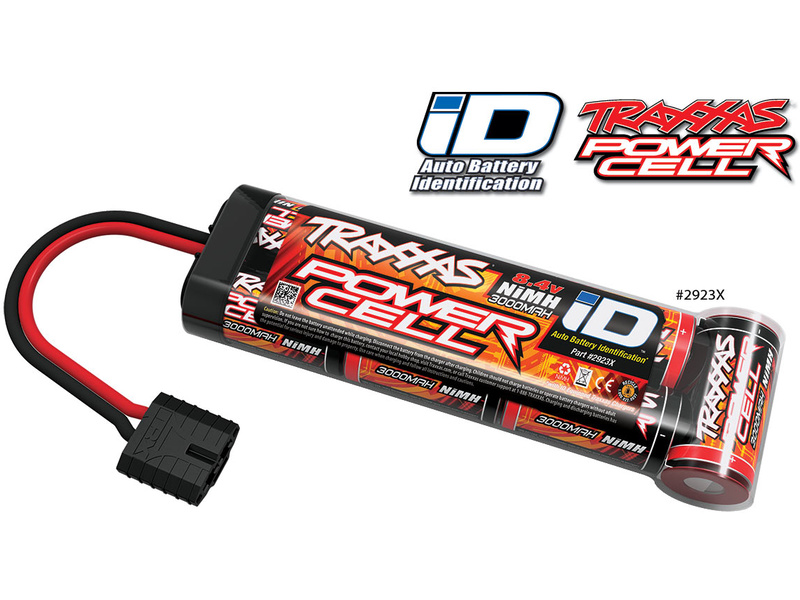

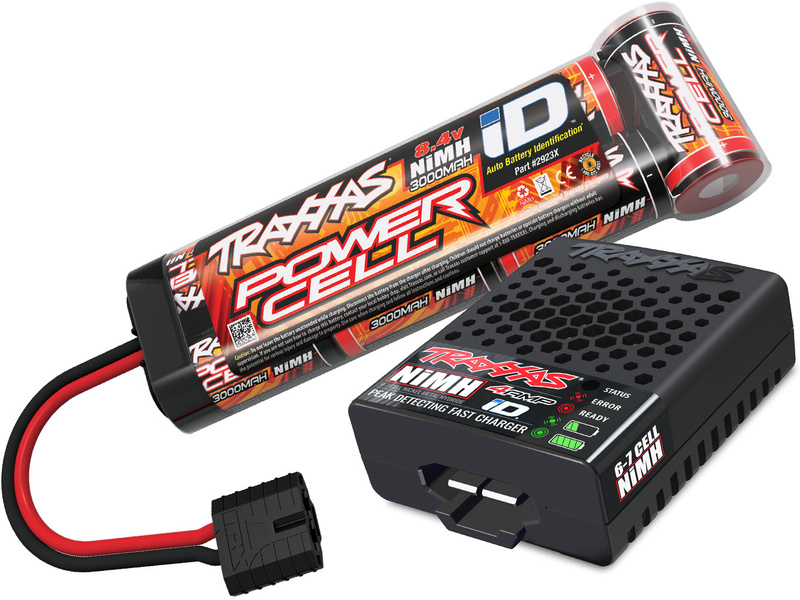

Capacity | 3000 mAh |
---|---|
Weight | 400 g ± 5% |

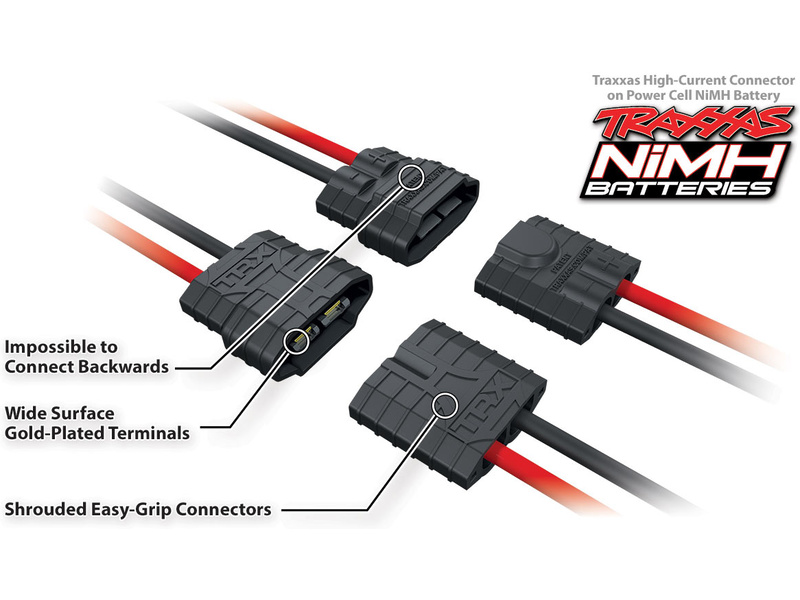

Connector | Traxxas iD |
Power supply | USB-C |
---|---|
Charging current | 4 A |
Charging power | 40 W |
Number of NiMH / NiCd cells | 6 - 7 cells NiMH |
Dimensions | 66,5 x 23,0 x 30,5 cm |
---|---|
Weight | 4,035 kg |
Traxxas set of six M2.5x8 mm countersunk machine screws with Phillips-drive heads.
Traxxas set of six M3x15 mm flat-head machine screws with hex-drive heads.
Traxxas set of six M2.5x6 mm cap-head machine screws with hex-drive heads.
Traxxas set of six M2.5x8 mm cap-head machine screws with hex-drive heads.
Traxxas M3x10 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x12 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x12 mm countersunk machine screws with hex drive heads. Set of six.
Traxxas M3x15 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x15 mm cap-head machine screws with hex drive heads. Set of six.
Traxxas M3x18 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x20 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x23 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x30 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x40 mm button-head machine screws with hex drive heads. Set of six.
Traxxas M3x6 mm button-head machine screws with hex drive heads. Set of six.
Traxxas set of six M3x6 mm flat-head machine screws with hex-drive heads.
Traxxas M3x8 mm button-head machine screws with hex drive heads. Set of six.
Traxxas set of six M3x8 mm flat-head machine screws with hex-drive heads.
Traxxas set of six M4x12 mm button-head machine screws with hex-drive heads.
Traxxas M4x12 mm countersunk machine screws with hex drive heads. Set of six.
Traxxas M4x15 mm countersunk machine screws with hex drive heads. Set of six.
Traxxas 3x6 mm cap-head machine screws with hex drive heads. Set of six.
