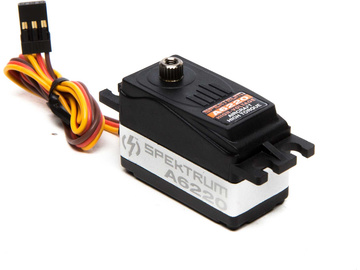

Spektrum A6220 HV Dig Low-Profile Hi-Torque MG Aircraft SX 23T

Servos » Standard » Digital » High Voltage

Brand: Spektrum

Item number: SPMSA6220

Bar code: 605482069561

Price with VAT: 2 759,00 Kč

In stock 2 pcs
Can be available 25.11.2024

Question to product Avaliabilty check

Overwiew
Parameters
Related item
Accessories

Parameters

Use	To the wings of aircraft models
Management	Digital
Power voltage	6 - 8.4 V

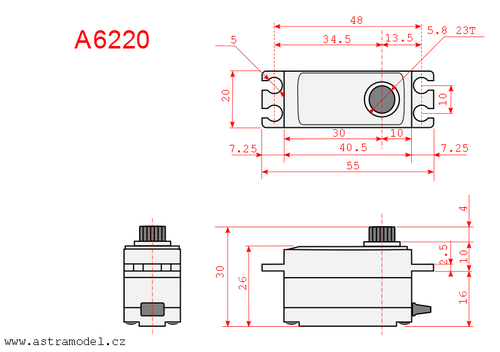

Dimensions	40.3 x 20 x 26 mm
Weight	46 g
Moment	6.8 kg.cm @ 6.0 V; 10.1 kg.cm @ 8.4V
Speed	0.15 s/60° @ 6.0 V; 0.11 s/60° @ 7.4 V
Transfers	Metal
Bearings	2x ball bearings
Engine type	Brushed Coreless
Futaba S.BUS	No
Connector	Standard JR
Tisícihran	23T
Cable	30 cm

Packaging informations
Dimensions	10,9 x 7,9 x 4,3 cm
Weight	0,117 kg
